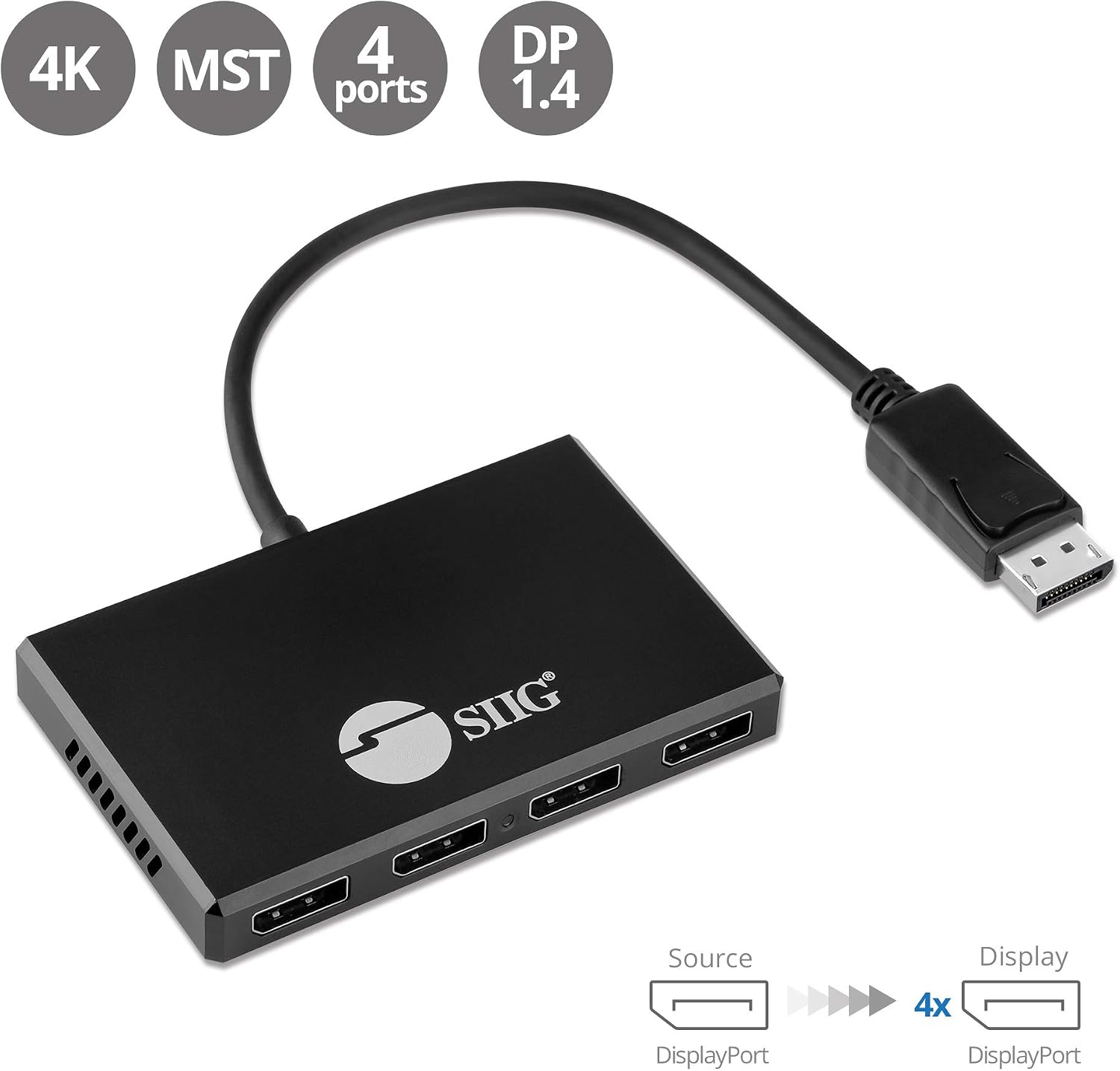

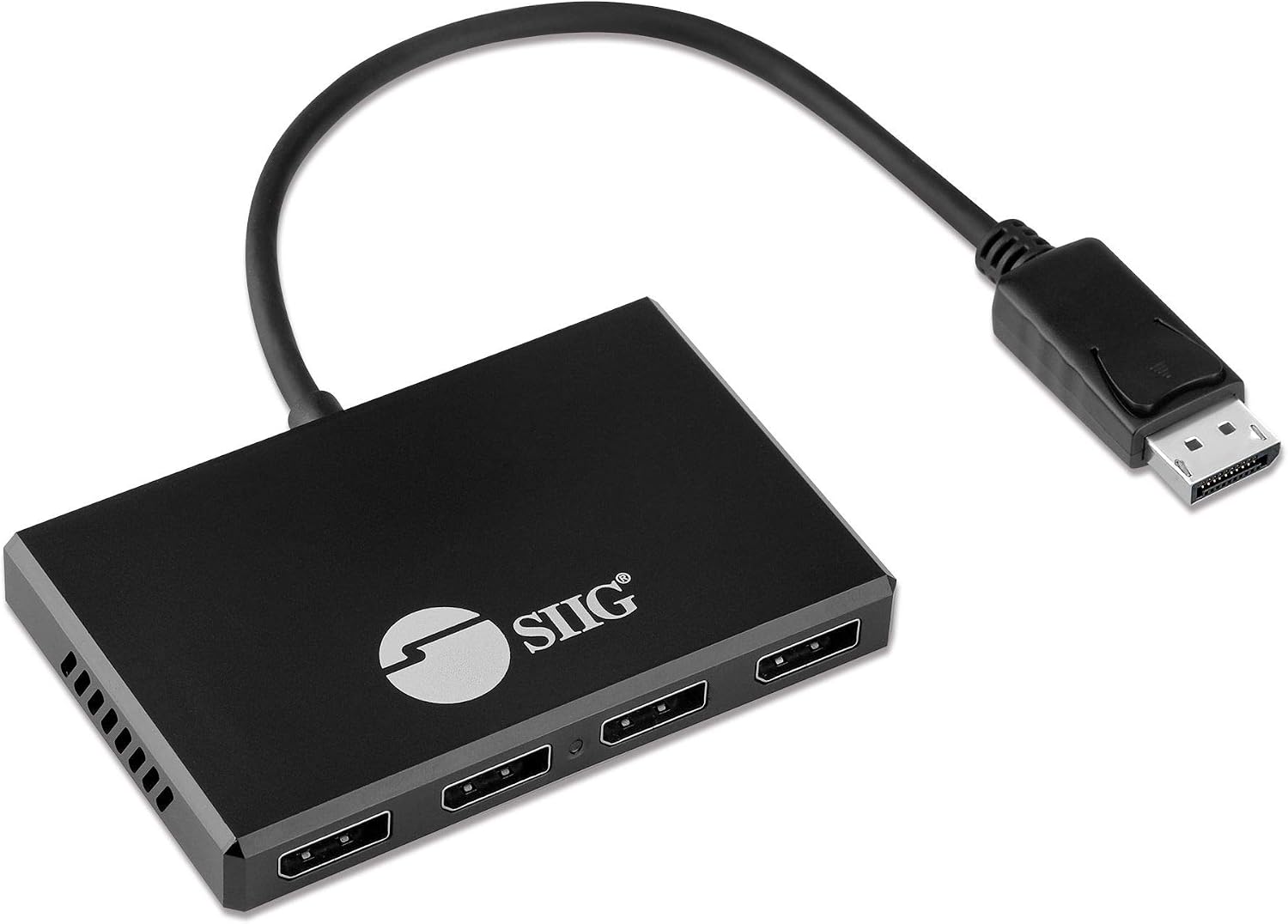

SIIG 4 Port DisplayPort 1.4 to DisplayPort MST Hub 4K - 1x4 DP 1.4 to DP Multi Monitor Splitter and Adapter with Extended Display Mode and Mirror Mode - for Windows PCs and Laptops (NOT for Mac OS)

Price : 94.88
Price Disc. :94.88
Disc :0%



Description of SIIG 4 Port DisplayPort 1.4 to DisplayPort MST Hub 4K - 1x4 DP 1.4 to DP Multi Monitor Splitter and Adapter with Extended Display Mode and Mirror Mode - for Windows PCs and Laptops (NOT for Mac OS)

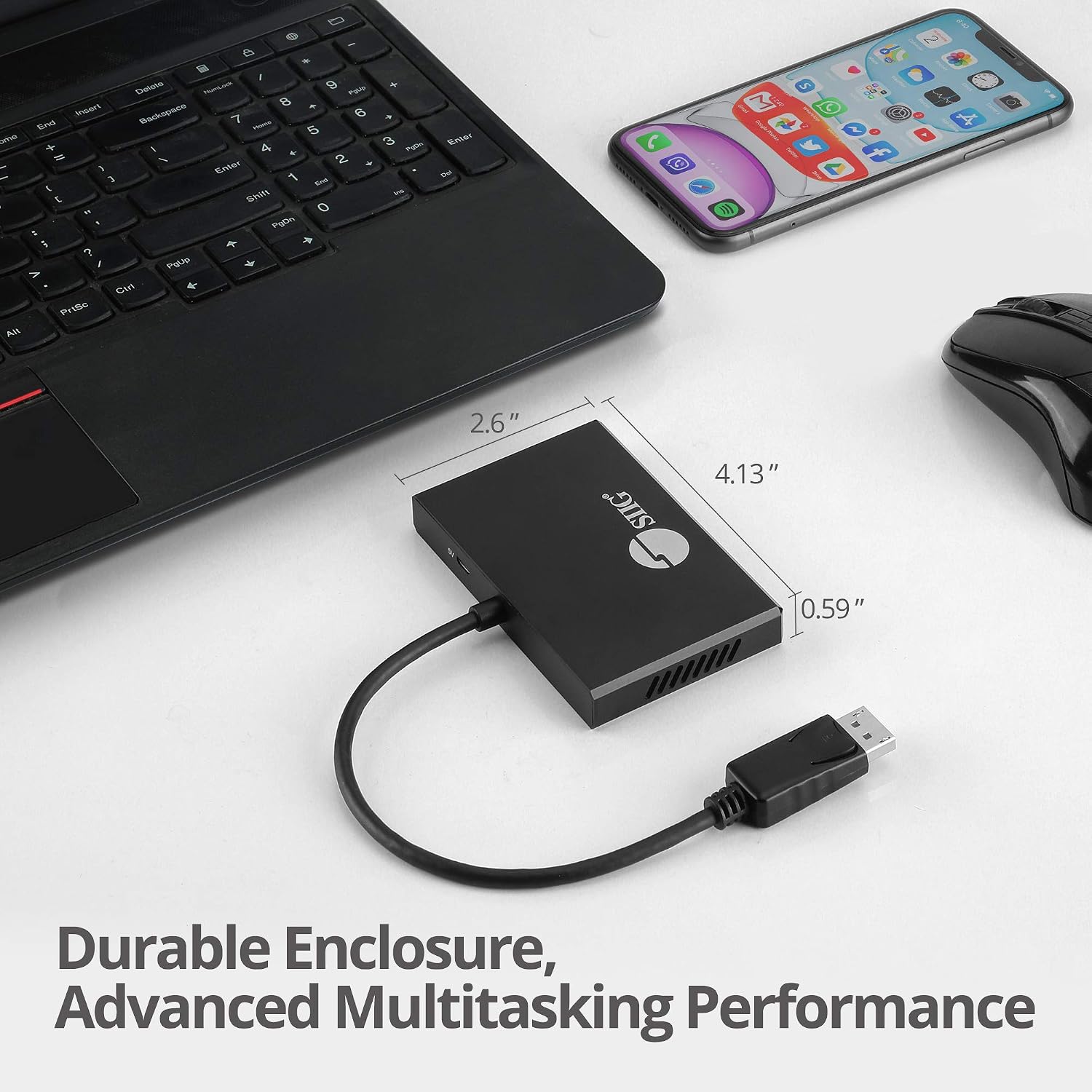

Style:DisplayPort 1.4Specifications: Chipset: VMM5330 + VMM5220Maximum resolution:One screen: 8K (7680 x 4320) @30Hz & 7680x4320@60Hz YUV 4:2:0 with DSC (Display Stream Compression)Two screen: 4K@60Hz / 5120x2880 @60Hz (DSC)Three screen: 4K@30Hz / 3840x2160 60Hz (DSC)Quad screen: 4K@30Hz / 3840x2160 60Hz (DSC) Compliant with DisplayPort 1.4 specificationsAudio: 5.1-ch surround audioDisplay Modes: Mirror, Extend, Panoramic video wall **Note: AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall modeTotal Bandwidth (max): 32.4Gbps - Supports a maximum of one 4K@60Hz display with two 4K@30Hz displays, four 4K@30Hz displays. Other resolution permutations which are less than or equal to 4K@30 will be fine also. For example, four 2K, four 1080p, 4K + 2K + 1080p + 1080p etc. *Note: The total combined bandwidth among all connected DP displays must NOT exceed the total maximum bandwidth of 32.4GbpsProductDimensions: 4.13" (W) x 0.59" (H) x 2.60" (D)Weight: 0.26 lbsColor: BlackHousing: aluminumConnector:1x 20-pin, DP, Male, Input4x 20-pin, DP, Female, Output 1x 5-pin, Micro USB, Female, Input (for power only)Environmental conditions:Operating temperature: 32 to 104 degrees FStorage temperature: -4 to 158 degrees FRelative humidity: 5% to 90% RH (non-condensing)Certifications/Standards: FCC, CE, RoHSWarranty: 2 years limitedCountry of origin: China System Requirements Desktop or laptop with an available DP 1.4 Dual mode outputAMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall modeRequires GPU / graphics card to support at least 4 external displays to use all 4 DP video ports at the same time with extended modeRequires USB 3.0 power source of at least 5V/900mA



Features of SIIG 4 Port DisplayPort 1.4 to DisplayPort MST Hub 4K - 1x4 DP 1.4 to DP Multi Monitor Splitter and Adapter with Extended Display Mode and Mirror Mode - for Windows PCs and Laptops (NOT for Mac OS)

• Make sure this fitsby entering your model number.

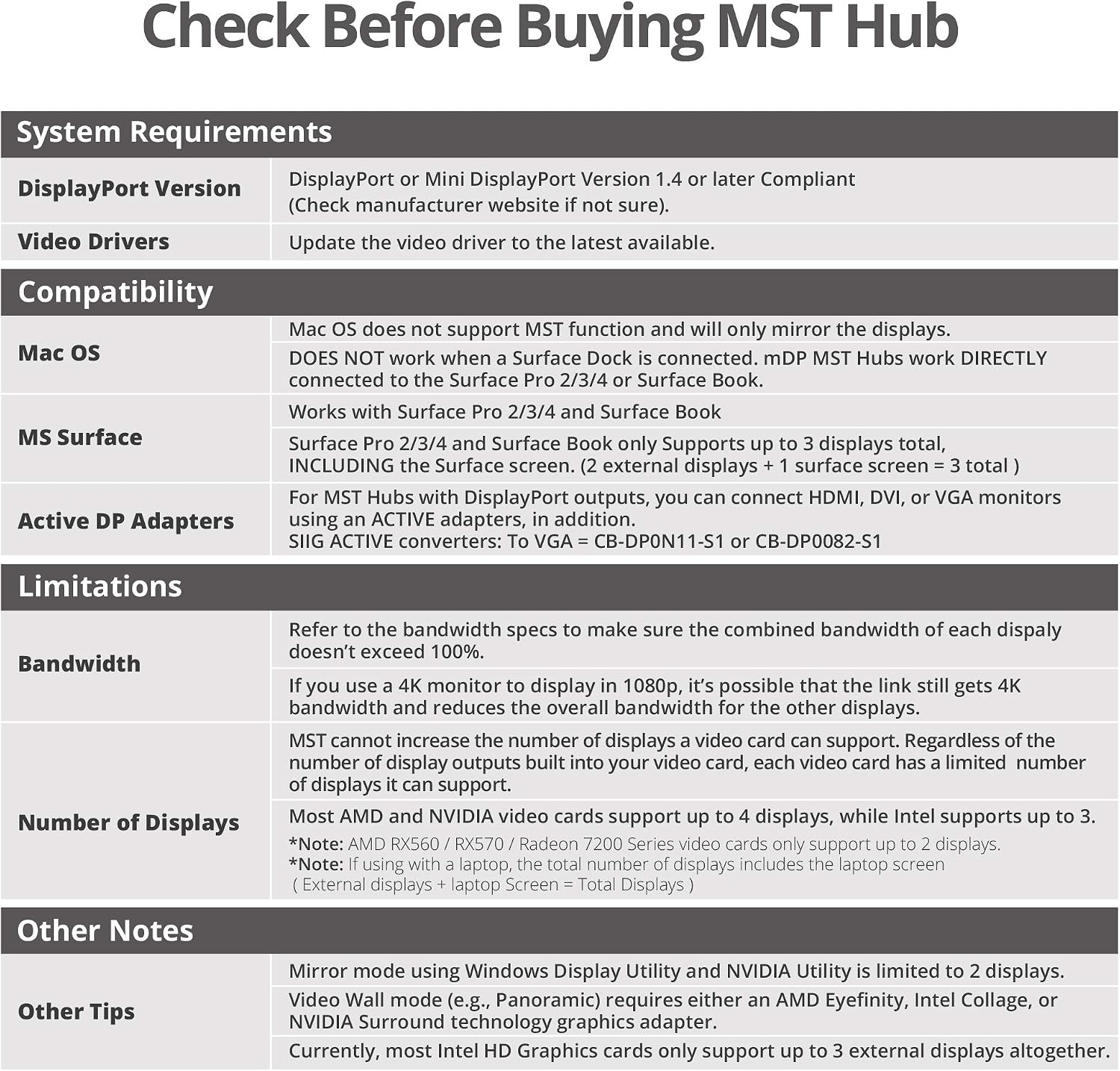

• âœ" 4 EXTRA PORTS: Boost productivity by connecting up to 4 displays to your system through a single DisplayPort 1.4 output; will work as extended mode(4 indepedent monitors), Splitter, or expanded multiple monitors as forming one display. Note: Mac OS does not support MST technology and you will get 4 mirrored displays instead of 4 independent displays when used with Mac OS

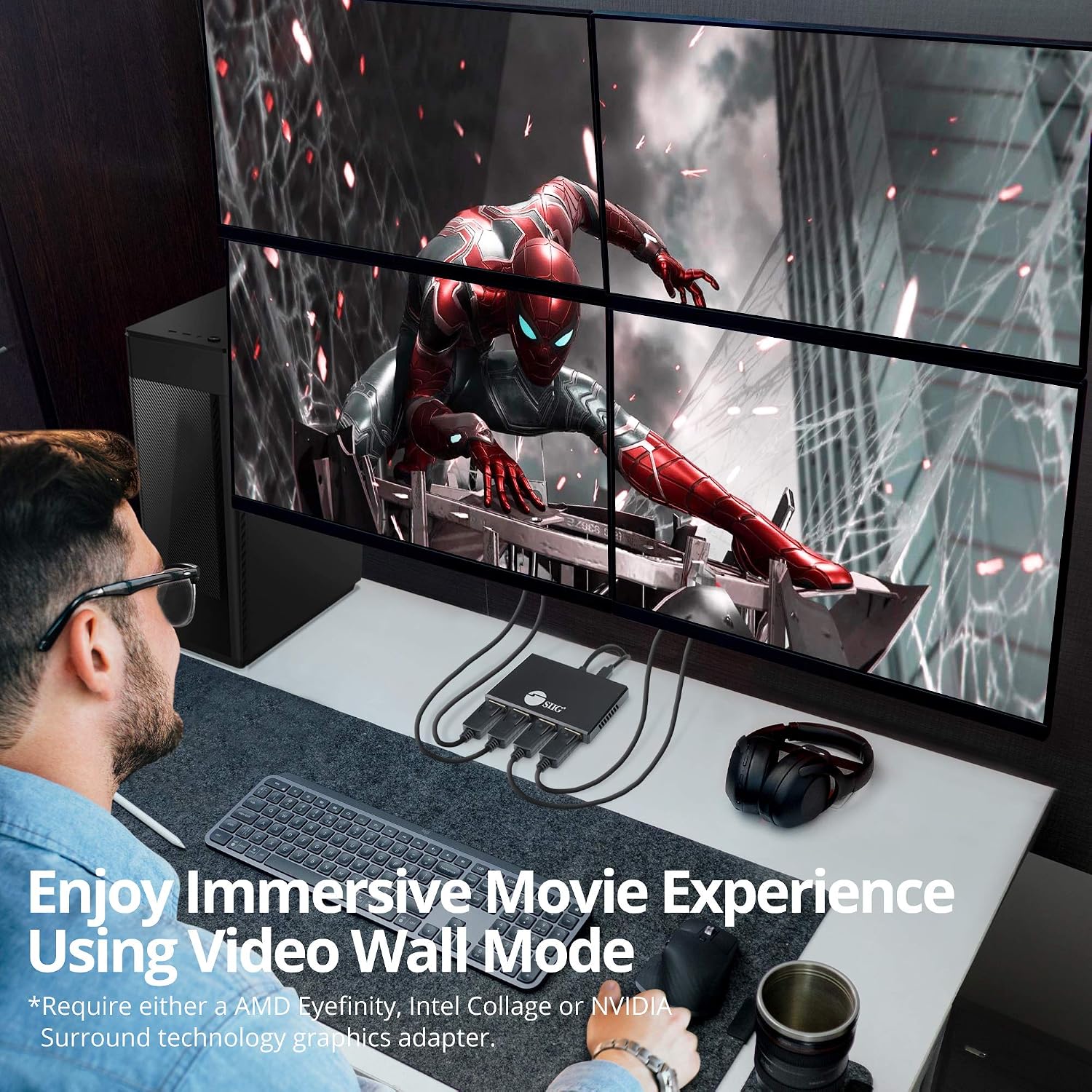

• âœ" MULTIPLE DISPLAY MODES: Provides multiple display modes such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode** which combines multiple monitors to use as one large display.

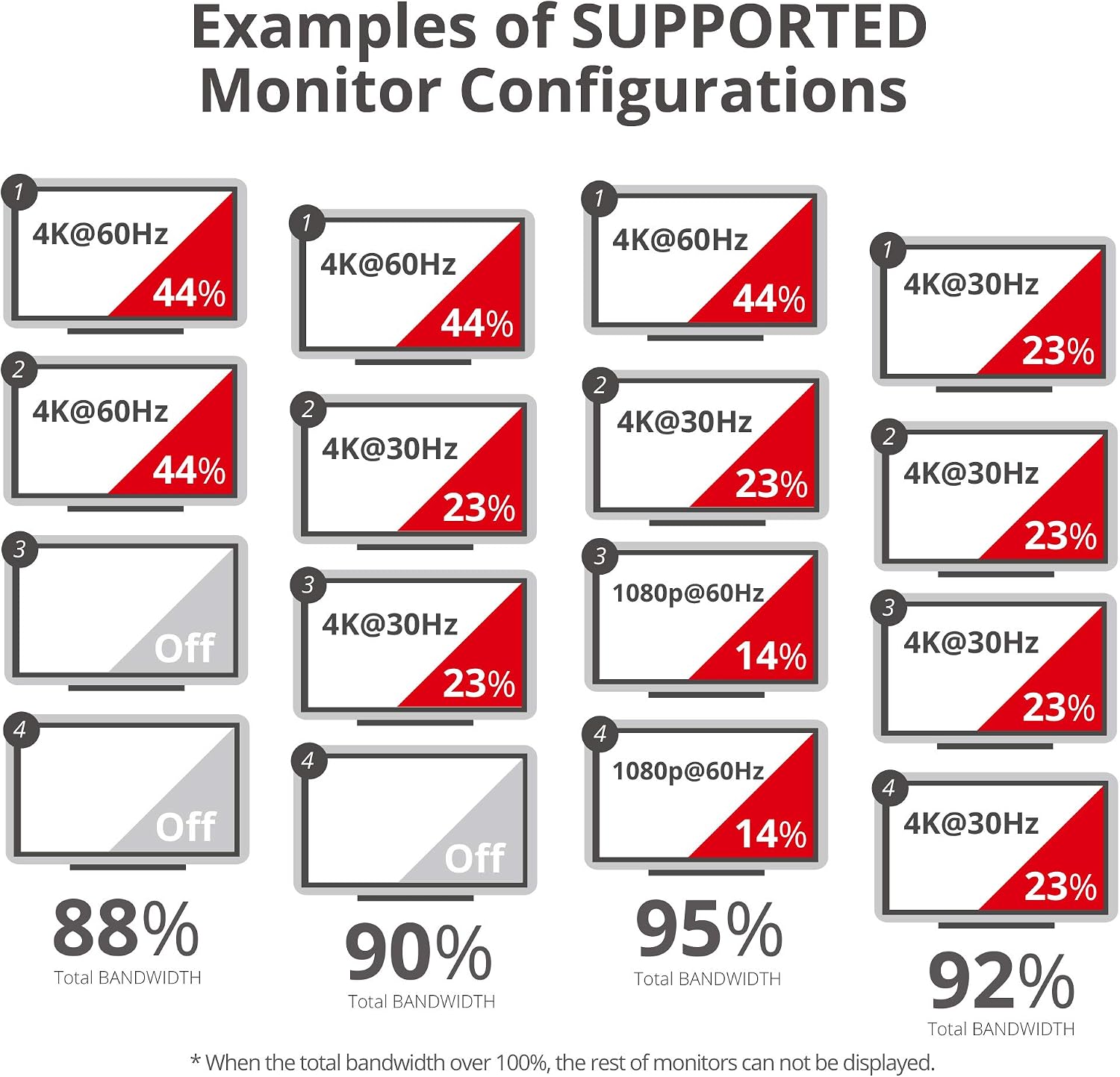

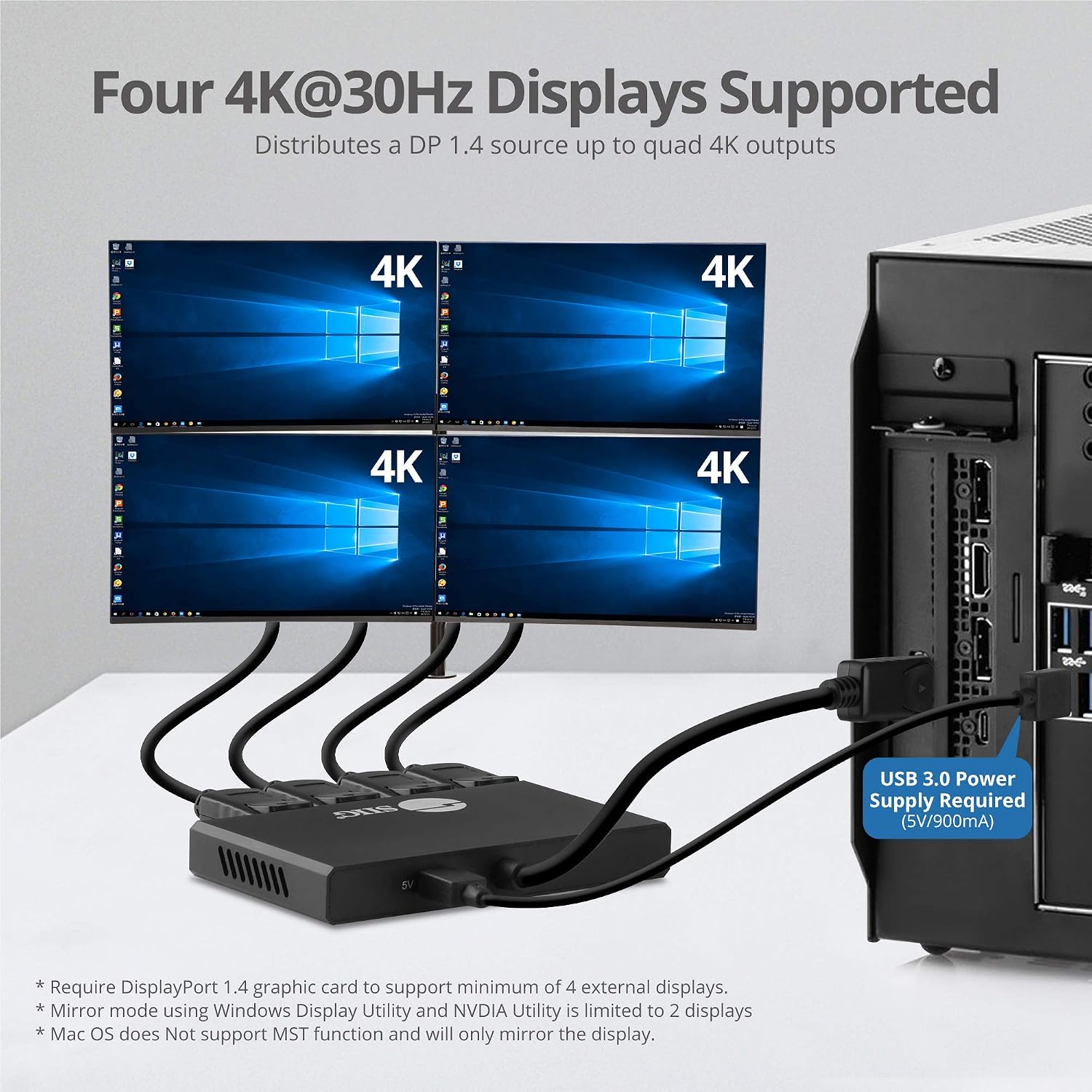

• âœ" HIGH PERFORMANCE: Total Bandwidth 32.4Gbps (max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, three or four 4K (3840x2160)@30Hz or less display. Other resolution combinations which are less than or equal to 4K@30Hz will work also.
• âœ"COMPATIBILITY: Compatible with DisplayPort 1.4 with MST graphics cards.

More Images of SIIG 4 Port DisplayPort 1.4 to DisplayPort MST Hub 4K - 1x4 DP 1.4 to DP Multi Monitor Splitter and Adapter with Extended Display Mode and Mirror Mode - for Windows PCs and Laptops (NOT for Mac OS)
